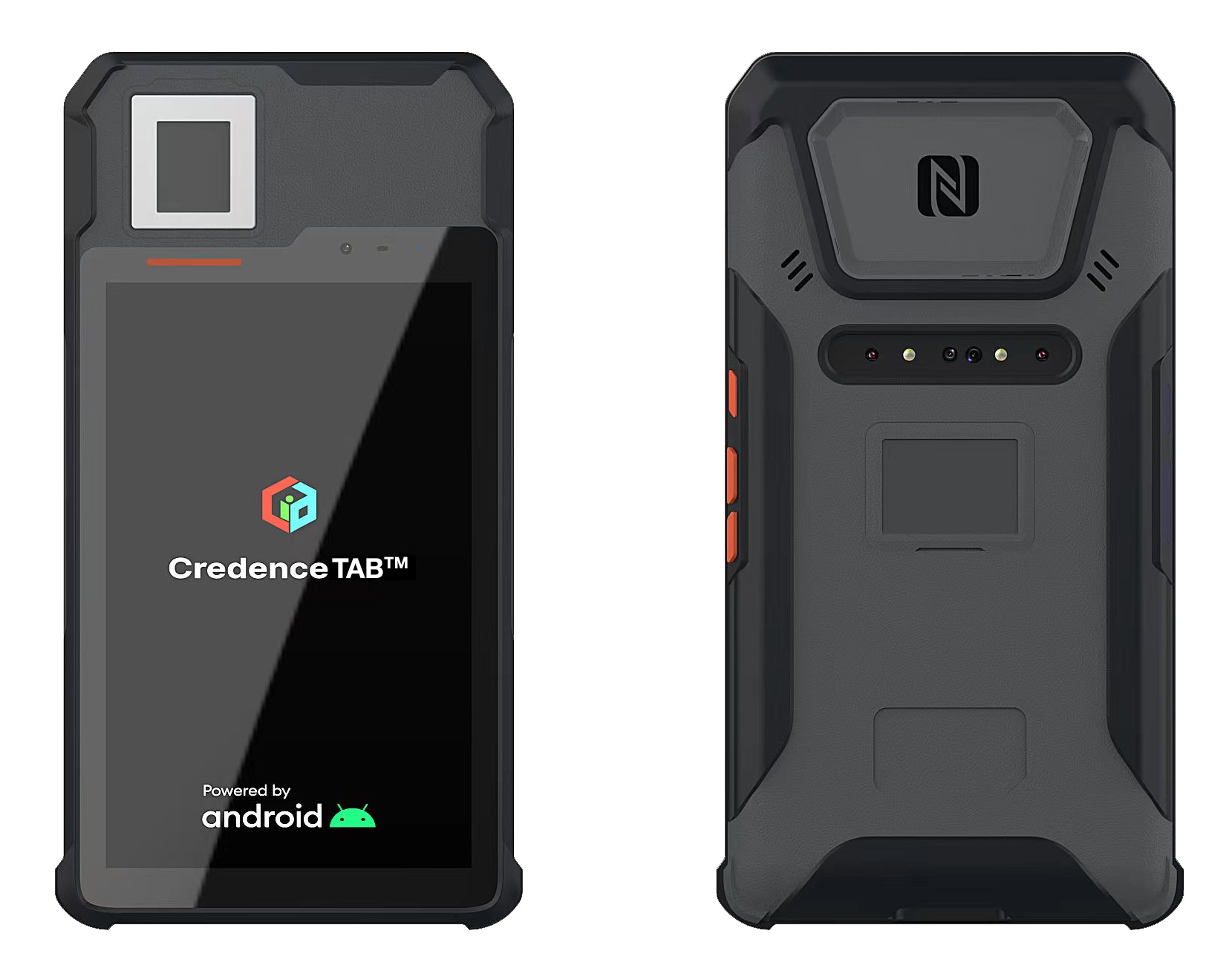

CredenceTAB4™
Coming Soon
Android 16 OS
FBI PIV Certified FAP30 Fingerprint Sensor
Cellular Certified
Google Play Store CertifiedBe the first to know when it launches
Join our mailing list and get notified as soon as the CredenceTAB4™ is available.
Biometrics at its Best
FAP 30, FAP 20, FAP 10,
Number of Fingerprint Features
FAP 30
FAP 20
FAP 10
Why does fingerprint scanner size matter?
Minutiae-based matching and pattern matching are the two broad categories of fingerprint matching techniques. The accuracy of both methods is heavily dependent on the number of fingerprint features captured by the sensor. A larger fingerprint scanner captures more features, producing better fingerprint images.
The Federal Bureau of Investigation (FBI) categorizes single finger scanners into three categories based on the capture area - FAP 30, FAP 20, and FAP 10.
According to a large-scale study conducted by NIST IR 7950, FAP 30 scanners exhibit huge improvements in matching accuracy.

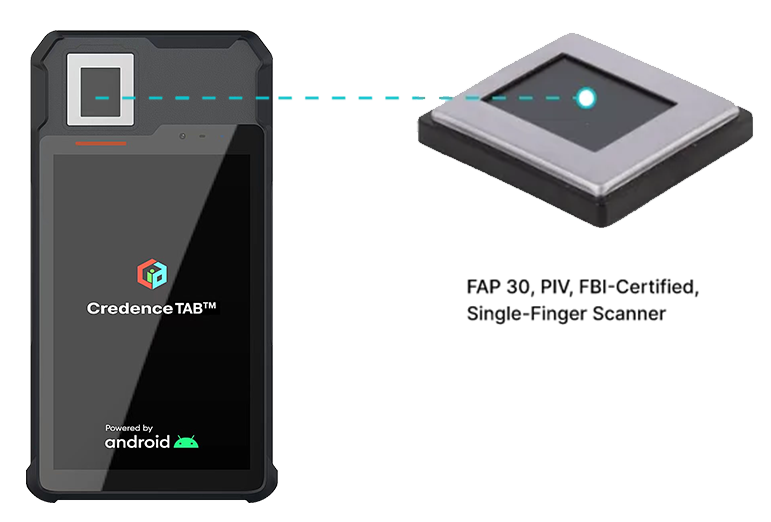

CredenceTAB4™ integrates an FBI PIV Certified FAP 30 fingerprint scanner (Integrated Biometrics Danno) with the largest fingerprint capture area of 0.8 x 1.0 inches,roughly 1.5 times that of a FAP 20 scanner and twice that of a FAP 10 scanner.

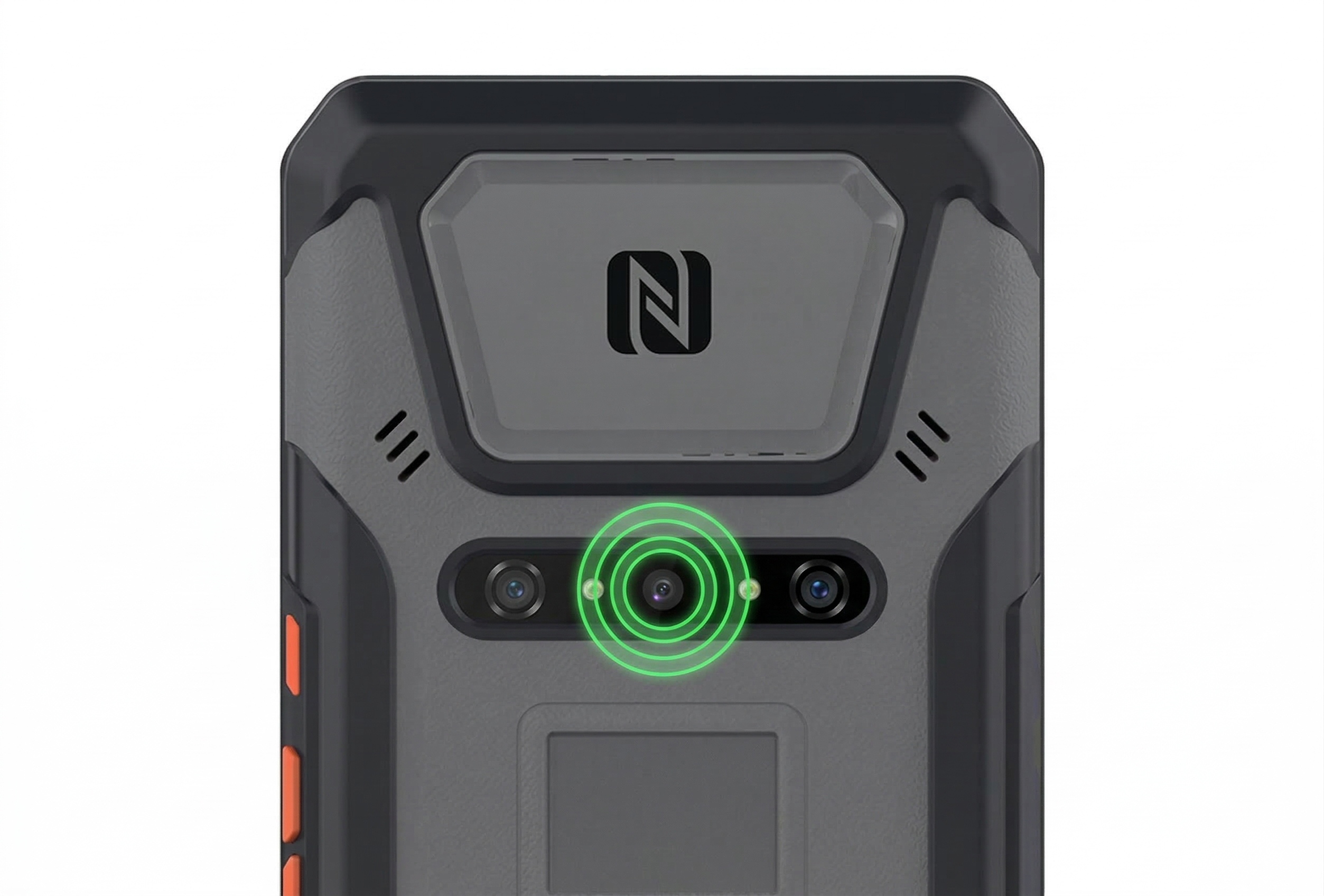

16+ MP Rear Camera
The CredenceTAB4™ features a high-resolution 16+ MP rear camera with dual-LED flash for superior face biometric capture and document scanning. Combined with an 8 MP front camera, it delivers exceptional image quality for identity verification in any lighting condition.
High-quality face biometric capture
High-resolution document and ID scanning
1D/2D barcode and QR code decoding
Built for the Field
FBI PIV Certified Biometrics
Integrated Biometrics Danno FAP30 sensor delivers enrollment-grade fingerprint capture trusted by government agencies worldwide. Certified to meet the most stringent quality standards.
MIL-STD 810G Ruggedized
Built to survive drops, extreme temperatures, dust, and moisture. The TAB4™ is tested against military specifications so your team can focus on the mission, not the equipment.
Advanced NFC & Smart Card
Full NFC with Apple ECP2 support plus ISO/IEC 14443A/B, MIFARE, FeliCa, and ISO 15693 standards. Optional contact smart card reader with SAM for eID and ePassport workflows.
High-Performance Compute
11nm Octa-Core processor up to 2.0 GHz with 4GB/8GB RAM and 64GB/128GB storage. Android 16 GMS Certified (EDLA) with full Google Play access for enterprise app deployment.
Global Cellular Connectivity
Worldwide LTE coverage with dedicated band support for USA, EU, EMEA, and Asia markets. Dual SIM with 3G WCDMA fallback, plus Wi-Fi ac and Bluetooth 5.x for comprehensive connectivity.
Universal Document Capture
Integrated barcode scanner reads all major 1D and 2D symbologies including QR Code, Data Matrix, PDF417, Code 128, and MRZ data for instant document verification.
Google Certified. Enterprise Ready.
Full Google Play Ecosystem
Deploy millions of apps via the Google Play Store. Equip your field operations with the complete Google productivity suite, including native support for Google Maps, Chrome, Gmail, and Drive.
Enterprise Security
Leverage Android Enterprise for streamlined operations.
Lifecycle Longevity
EDLA certification provides peace of mind for long term deployments. Your fleet stays secure, compliant, and current with regular Android security patches and OS updates throughout the entire device lifecycle.
One Platform, Many Applications
Biometric Registration
Enroll citizens with enrollment-grade fingerprint and photo capture for national ID programs.
National Identity
Support government identity initiatives with certified biometric and document verification.
Law Enforcement
Field identification and suspect verification with real-time database connectivity.
Time & Attendance
Biometric workforce management for factories, offices, and distributed teams.
Voter Verification
Ensure election integrity with rapid biometric voter authentication at polling stations.
E-KYC
Streamline customer onboarding with biometric identity verification and document scanning.
Border Control
ePassport reading and biometric matching for secure border crossing management.
Access Control
Multi-factor identity verification for secure facility entry and zone management.
Technical Specifications
Processor
11nm Octa-Core Processor | Up to 2.0 GHz | Quectel SC200U
Operating System
Android 16 Google GMS Certified (EDLA),full Google Play ecosystem & enterprise apps
Memory & Storage
4 GB LPDDR4X + 64 GB eMMC (Default) · 8 GB LPDDR4X + 128 GB eMMC (Optional)
Display
8" diagonal TFT | 500 NITs brightness | 5-point multitouch | 7H scratch resistant | AR/AF coating
Fingerprint Scanner
FBI PIV Certified FAP 30,Integrated Biometrics Danno
Camera
Front: 8 MP · Rear: 16+ MP with dual-LED flash
Cellular
LTE USA: B2/4/5/7/12/13/14/17/25/26/66/71 B41 · EU: B1/2/3/4/5/7/8/20/28 B38/40/41 · EMEA & Asia: B1/2/5/7/8/19 · Dual SIM · 3G-WCDMA fallback
Wi-Fi & Bluetooth
802.11 a/b/g/n/ac 2.4+5GHz · Bluetooth classic and BLE 5.x
NFC
Apple ECP2 · ISO/IEC 14443A/B MIFARE · JIS X 6319-4 (FeliCa) · ISO/IEC 18092 · ISO/IEC 15693 · Android NFC APIs
GPS
GPS + Galileo + GLONASS + BDS + QZSS + SBAS
Barcode Scanner
All major 1D/2D symbologies: QR Code, Data Matrix, PDF417, Code 128, Code 39, EAN/UPC, MRZ (Optional)
Smart Card Reader
Contact chip card reader + SAM · ISO 7816 T=0, T=1 · 100,000 insert/remove cycles (Optional)
USB
1× Type-C USB 3.1 OTG & charging · 1× Type-A USB 2.0
Battery
8,000 mAh 3.8V
Ruggedization
MIL-STD 810G Certified
Dimensions
140 × 260 × 16 mm · Weight: 600g
